The Problem That Doesn’t Show Up on the Drawing

Here’s where it gets more interesting from an engineering standpoint. Molding a connector to the correct CAD dimensions is one thing. Keeping it at those dimensions after it’s been installed, pressurized, and cycled through real clinical use is a different challenge entirely.

Medical lines experience pressure spikes. They get repositioned, pulled, and torqued during patient care. In applications like infusion pumps and continuous IV drips, there’s sustained mechanical load on the connector over extended periods. In lower-grade polymers, that load can cause creep, which is the slow, gradual deformation of plastic under stress.

A 6% taper that shifts by even a fraction of a millimeter under creep is no longer sealing the way it was designed to. At best, you get micro-leaks. At worst, you get a disconnection event in a critical care setting.

This is why material selection matters as much as geometric design. Brevet molds its ISO 80369-7 compliant Luer assemblies from high-performance engineering thermoplastics, including premium medical-grade polycarbonates, specifically because of their dimensional stability under load. These materials have the tensile strength and flexural rigidity to hold the connector geometry through high-torque tightening, pressure cycling, and the physical demands of real clinical use.

Putting Compliance to the Test

Getting to ISO 80369-7 certification requires more than building a compliant part and submitting paperwork. The connectors have to pass a structured set of physical validation tests designed to simulate what they’ll actually experience in clinical use.

That includes sustained hydrostatic pressure testing to verify there’s no fluid egress across the mating plane. It includes subatmospheric pressure testing to check for air ingress under negative pressure, which is critical for preventing air embolism in central line applications. Chemical exposure testing evaluates how the material holds up when it contacts the solvents and agents common in clinical environments, things like isopropyl alcohol, lipids, and medical cleaning agents under mechanical stress. And mechanical separation testing verifies that the lugs and threads can withstand the axial and torsional forces applied during connection and disconnection without stripping or pulling apart.

These aren’t edge cases. They’re the conditions these connectors will face, and a compliant part has to perform through all of them.

The Connector Is the Last Line of Defense

In clinical fluid path design, a lot of attention goes into pump selection, tubing routing, and system architecture. The connector at the end of the line can feel like a minor detail by comparison. But that connector is the point where two separate systems meet, and it’s the last physical barrier between the right fluid path and the wrong one.

ISO 80369-7 compliance gives that barrier real structural meaning. Brevet’s precision-molded, fully validated Luer assemblies are built to hold that standard through the demands of real clinical use, not just initial qualification testing.

When you’re designing a fluid path where the stakes are this high, the connector spec deserves the same attention as everything else in the system.

You can actually see what’s going on

Here’s something that doesn’t get talked about enough: with a metal connector, you have no idea what’s happening inside the fluid path. If an air pocket forms, if a seal begins to degrade, if particulate contamination enters the loop, a stainless steel fitting hides all of it until a critical thermal event forces the issue.

Custom polycarbonate connectors provide full optical clarity. That transparency transforms a passive structural component into an active diagnostic tool. Field service engineers and automated optical monitoring systems can instantly verify whether there’s complete fluid wet-out with no micro-bubbles, whether coolant is actually flowing or there’s a stagnation point somewhere unexpected, and whether early signs of contamination or fluid breakdown are starting to appear before they cause a clog in the micro-channel cold plates.

In high-stakes environments like medical diagnostics or laboratory liquid cooling, being able to physically see the fluid path in real time isn’t a nice-to-have feature. It’s a meaningful layer of operational safety that metal simply cannot offer.

Keeping heat exactly where it belongs

Stainless steel conducts heat very effectively. That’s great news inside a heat exchanger. Along the rest of the fluid transport path, it’s often a liability.

Metal fittings absorb heat from the fluid and radiate it into the surrounding chassis environment. They can also pick up ambient internal cabinet heat and transfer it right back into a chilled coolant line. Neither of those outcomes is what a thermal architect wants.

Polycarbonate has a remarkably low thermal conductivity compared to metals. That natural thermal isolation keeps the heat picked up by the coolant contained within the fluid path until it reaches the radiator or facility heat exchanger. For system architects trying to maintain strict, predictable control over the internal micro-climates of sealed electronic enclosures, this is exactly the behavior you’re designing for.

Fewer parts, fewer problems

Machining complex, multi-port fluid routing paths out of stainless steel is expensive and subtractive. Every additional port, angle, or branch typically requires separate fittings threaded together, which creates a compounding chain of potential leak points. The more connections, the higher the statistical probability that one of them eventually fails.

With polycarbonate, complex fluid geometries can be consolidated into a single, custom injection-molded component. One molded part can integrate a barb connection, a mounting flange, and a multi-directional split. Reducing the total number of joints cuts assembly time and BOM costs, and it fundamentally reduces the statistical probability of a leak. Fewer connection points means fewer failure modes. That’s a straightforward engineering win.

Evolution of Fluid Loop Materials

Stainless steel will always have a place in ultra-high-pressure industrial fluid dynamics. But for the precise, weight-sensitive, and high-visibility demands of modern electronic liquid cooling, it’s no longer the automatic choice it once was. Engineered thermoplastics like polycarbonate are filling that gap in ways that make the resulting systems lighter, more transparent, thermally cleaner, and architecturally simpler.

At Brevet, we design and manufacture precision fluid path components for exactly these kinds of environments. Our cleanroom manufacturing capabilities and deep experience in advanced engineering thermoplastics position us to help engineering teams move from early prototypes through to production-ready assemblies, without losing fidelity at any stage of the process. If you’re designing a fluid loop and wondering whether polycarbonate is the right call for your application, we’d love to talk through it with you.

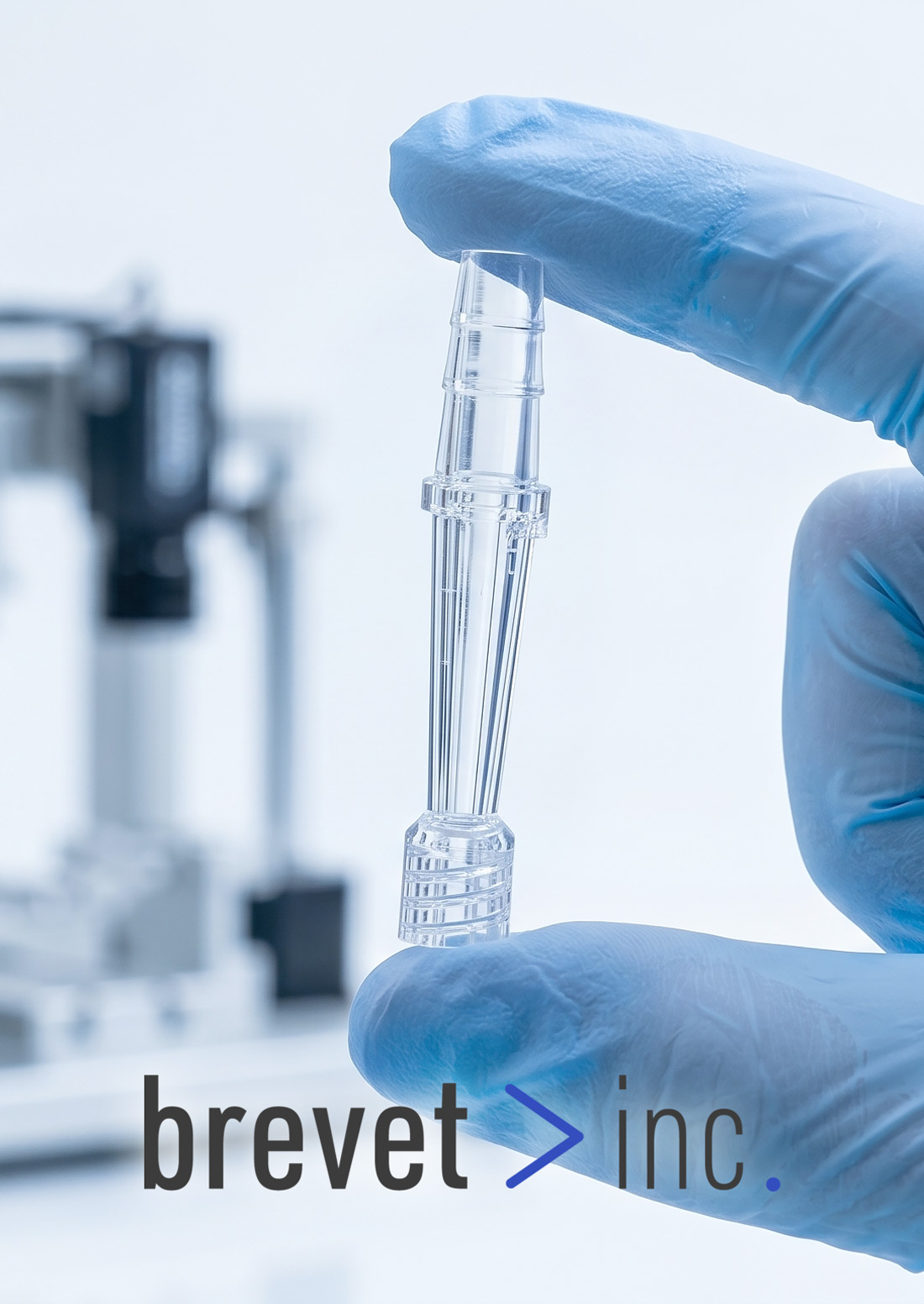

Sustainable Plastics Aren’t Optional Anymore

For a while, sustainability in medical materials felt like a nice-to-have, something for the CSR report. That’s changed. Regulatory bodies and health systems are now treating the lifecycle of single-use technologies and disposable kits as a procurement issue, not just a marketing one.

A few shifts are worth noting. On the polymer side, the old standard was virgin, petroleum-based resin with a heavy carbon footprint. The new benchmark is bio-attributed polycarbonate and recyclable medical-grade PVC that performs identically to the legacy materials, no compromise on clarity, strength, or biocompatibility.

Sterilization is another area getting attention. Materials that used to yellow or degrade after repeated gamma or e-beam exposure are being replaced with radiation-stable formulations that hold up to those sterilization loops without losing structural integrity.

And on the compliance side, the bar has gone up. It’s not enough to have a material certification buried somewhere in a fragmented supply chain. OEMs increasingly want domestic traceability, USP Class VI compliance, and rigorous extraction testing built into the sourcing process from day one, so there’s nothing to untangle later when a regulator asks questions.

Fluid Lines Are Getting Smart

Hardware used to just sit there and do its job quietly. That’s changing fast. As healthcare becomes more data-driven, manufacturers are looking at the fluid path itself as a place to capture information, not just move liquid from point A to point B.

Smart connectors are a big part of this. These are components with embedded sensors or distinctive mechanical profiles that do more than just connect two lines. They help prevent misconnections, monitor flow rates in real time, catch air bubbles before they become a problem, and flag pressure spikes early enough to actually do something about it.

The interesting part is where this sensing capability lives. It’s getting built directly into the connector or valve assembly itself, inside a fluid path that still has to be completely leak-free and reliable. That’s a tall order: you’re asking a small mechanical part to be both a sealed physical barrier and a diagnostic tool. Getting both right at once is becoming one of the more interesting engineering problems in the space.

Scaling Without the Headaches

Here’s the thing all three of these trends have in common: none of them work if your supply chain is a mess. Miniaturized components, sustainable materials, embedded sensors, these all add complexity, and complexity is exactly what high-volume manufacturing can’t absorb.

That’s why more OEMs are consolidating their bills of materials with partners who can handle the whole picture: domestic manufacturing, ISO 13485 certification, FDA registration, and the ability to package custom connectors, tubing, and manifolds into a single pre-validated SKU. When that’s in place, you skip the custom tooling delays and the back-and-forth with regulators, and you get to market on a timeline you can actually plan around.

Where Brevet Fits In

This is exactly the kind of work Brevet is built for. From precision miniaturization to material selection that meets the 2026 sustainability bar, Brevet partners with OEMs to bring next-generation devices to market without the usual scaling headaches.

If you’re working through any of these challenges right now, it’s worth a conversation. Explore Our Custom OEM Capabilities.

Designing for Tight Spaces

Space is the other major constraint. Server blades in 1U and 2U configurations leave almost no room to maneuver, and cramming standard industrial couplers into those enclosures is a recipe for kinked lines, stressed connector interfaces, and eventual micro-leaks. In a high-density cooling loop, a micro-leak is not a minor inconvenience — it is a potential catastrophe for the hardware it protects.

Brevet’s approach to this challenge is to engineer fluid components around the chassis rather than force the chassis to accommodate off-the-shelf parts. Compact 90-degree elbows and multi-port T-junctions route fluid loops flush against enclosure walls, eliminating the awkward angles that create stress points. And because every deployment has its own dimensional quirks, modular injection tooling allows for custom port configurations, outer diameters, and engagement lengths without the cost and delay of entirely new hard tooling, so teams can move quickly without compromising on fit or flow performance.

Keeping It Clean

There is one more variable that rarely gets the attention it deserves: particulate contamination. Microscopic debris or mold flash left inside a connector during manufacturing does not stay put. Under high flow velocities, it breaks free and travels straight to the micro-channel cold plates keeping processors running, restricting flow, causing localized clogging, and setting up the kind of thermal runaway that ends with a very expensive service call.

This is why Brevet applies cleanroom manufacturing standards to components destined for high-density cooling environments. Every connector, adapter, and custom manifold block can be injection molded, inspected, and processed in a certified cleanroom environment, then double-vacuum packaged before it ever reaches an assembly line. It is an approach borrowed directly from medical device manufacturing, and in a modern data center, the stakes are not all that different.

Hemolysis: Red blood cells physically rupture when they slam into internal micro-ridges or get caught in high-shear turbulent wakes, sending free hemoglobin into circulation where it doesn’t belong.

Thrombogenesis: Behind internal flash or abrupt geometric transitions, turbulent stagnation zones alter local shear rates, exactly the conditions that activate platelets and seed clot formation along the fluid wall.

The fix isn’t complicated in concept; eliminate the flash, sweep the transitions, give blood a smooth path. The challenge is executing that at production scale, consistently, in a regulatory environment that demands documentation at every step.

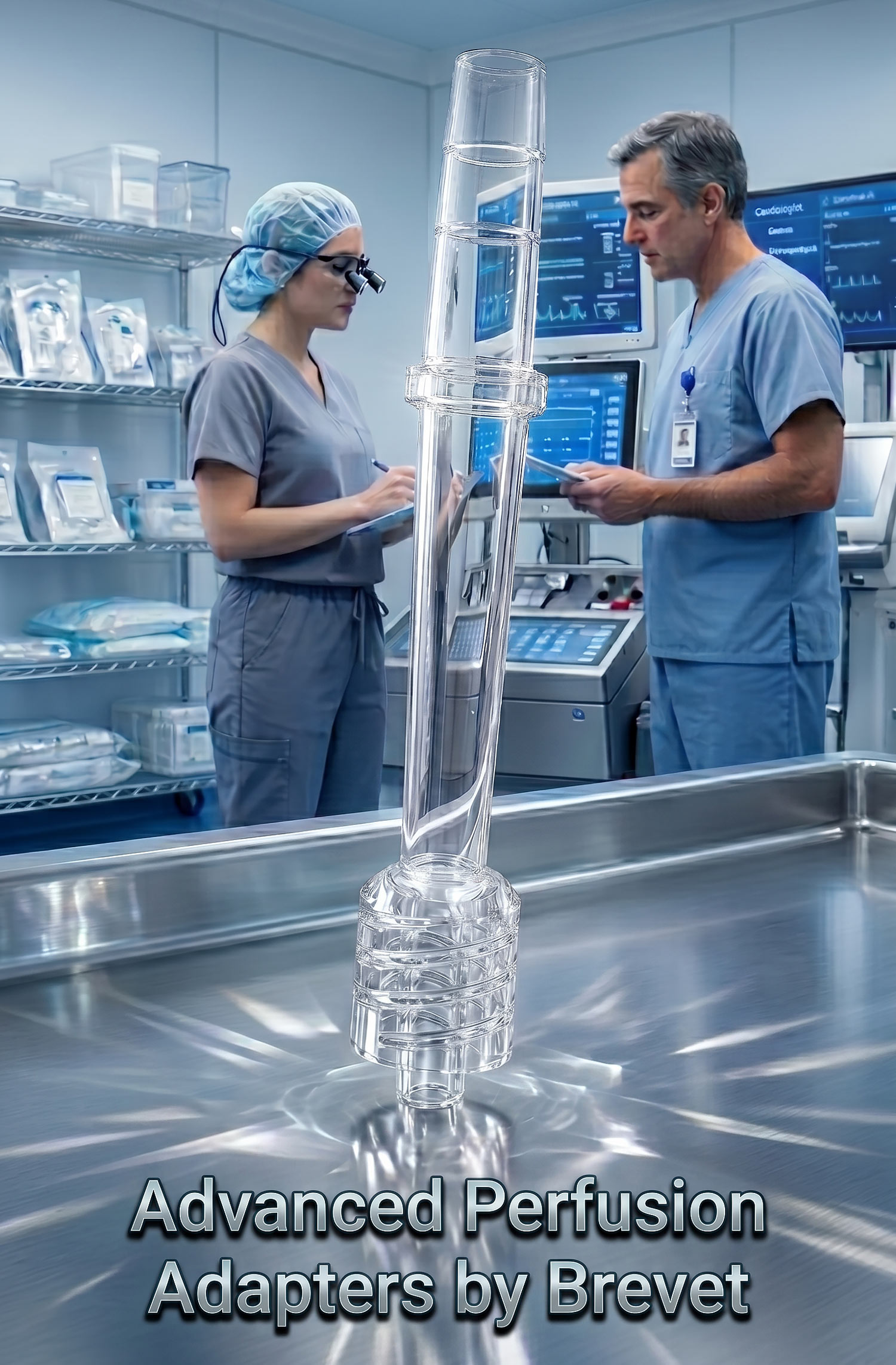

Custom Perfusion Adapter Modification via Modular Tooling

Engineering teams have historically faced an uncomfortable choice here, either to spend the capital and endure the lead times required to build fully custom hard-tooled injection molds, or accept off-the-shelf industrial connectors and engineer around their limitations. Neither option is great when you’re trying to move a device from R&D to clinical use on a real timeline.

Brevet takes a different path. Rather than building custom molds from scratch, the approach uses standardized high-performance perfusion adapter base geometries that can be precisely modified at the tool level. Need a specific port angle? A non-standard outer diameter? A unique multi-port configuration designed to mate cleanly with a Y-connector assembly? Brevet’s engineers modify core pins and cavity inserts directly.

The result is a fully tailored adapter geometry without the prohibitive cost or timeline of dedicated hard tooling. For MedTech teams trying to close the gap between a CAD file and a mass-production injection tool, that’s not a small thing.

Material Integrity Under Sustained Hydrostatic Loads

Getting the geometry right is necessary. Getting the material right is equally so as well.

Perfusion adapters live in a demanding mechanical environment: sustained hydrostatic pressure, transient pressure spikes from mechanical pumps, and potential chemical exposure from lipids and medical solvents over the course of a long surgical procedure. The wrong material doesn’t fail dramatically. It can have micro-cracks, or it flexes imperceptibly. And then, at the worst possible moment, it doesn’t hold.

Brevet designs these components using premium medical-grade polycarbonates such as radiation-stable Covestro Makrolon® Rx2530, the industry benchmark for rigid clinical applications. Polycarbonate balances exceptional tensile strength with high impact resistance, and its optical clarity gives perfusionists a direct visual window into the fluid path to spot micro-bubbles or early signs of clot formation before they become a problem.

Transitioning from prototype to high-volume production introduces another variable worth taking seriously: uneven cooling inside the mold creates residual stresses that don’t show up immediately. They appear later, when the component is exposed to lipids, medical solvents, or the cyclic pressure loading of a long procedure. Brevet’s engineering team maps shrink rate and melt flow index against the mold’s cooling profile precisely to prevent those stresses from being baked in at the tool.

Engineering Cleanliness and Particulate Control

A perfusion adapter’s geometry and material properties mean nothing if the manufacturing environment introduces contamination. Particulates picked up during molding or packaging don’t stay in the adapter. They enter the circuit, and from there, the patient.

Genuine cleanliness in this context isn’t a checklist item. It requires a locked-down production loop: robotic handling directly from the cleanroom molding press, inline visual inspection via high-magnification machine vision, and immediate double-vacuum packaging that preserves aseptic integrity from the tool to the surgical kit. Every handoff is a potential contamination point. The goal is to eliminate as many handoffs as possible.

In cardiac perfusion, the smallest components carry the largest responsibility. Getting them right isn’t optional.

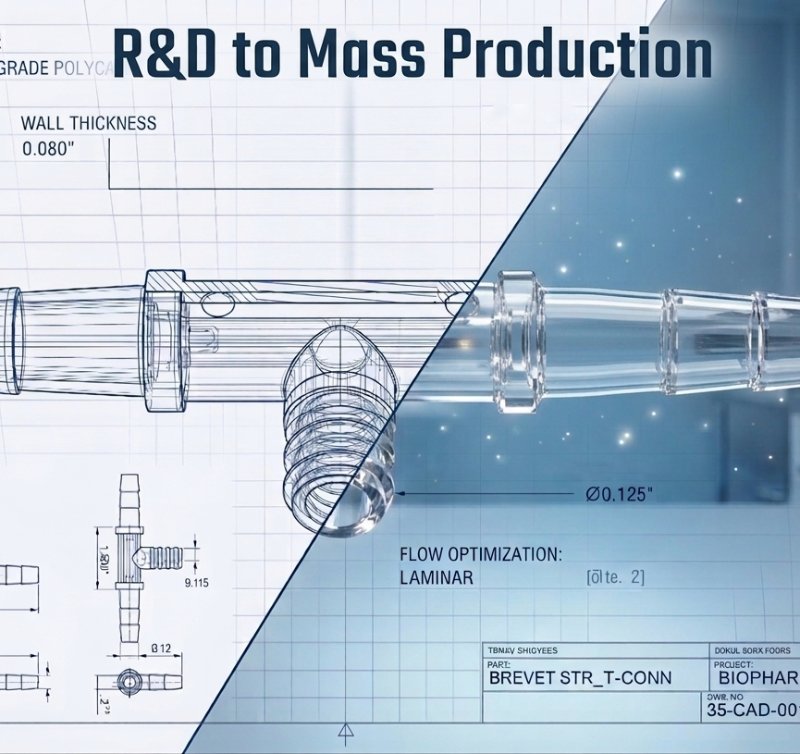

The Brevet Advantage: Design for Manufacturability

Brevet’s approach starts with a simple premise: if a product is going to be manufactured at scale, it should be designed with scale in mind from day one. By embedding industrial manufacturing constraints directly into the early R&D process, Brevet eliminates the costly redesign cycles that typically derail commercial launches.

This isn’t just a philosophy. It’s a structural commitment to how the work gets done.

Bridging the Gap: The Brevet Framework

Rather than treating R&D and production as a handoff, Brevet operates as a synchronized ecosystem where design, prototyping, and mass manufacturing coexist under a single engineering umbrella. Three core principles make it work.

Universal Adaptability: Brevet’s infrastructure is built to flex. From custom polymer tubing for pharmaceutical applications to precision multi-lumen profiles for MedTech to robust components for industrial assembly, the production framework scales cleanly across sectors without losing speed or quality.

Agile Prototyping and Rapid Tooling: Moving toward mass production doesn’t have to mean slowing down. Through advanced bridge tooling and modular manufacturing processes, Brevet helps clients scale volume incrementally while continuing to validate design at every stage.

Unified Quality Systems: Regulatory compliance isn’t something that gets bolted on at the end. Validation documentation, material traceability, and testing protocols are integrated from the prototype phase forward, so teams aren’t scrambling to prove readiness when they finally reach scale.

Unlocking Speed to Market

Time-to-market is the number that ultimately matters. A prolonged transition from prototype to production doesn’t just add cost — it hands an advantage to competitors who move faster.

When the engineers who developed your initial prototypes are the same team managing your high-volume production lines, something valuable is preserved. Tribal knowledge stays intact. Setup errors that typically emerge from a handoff never materialize. And scaling becomes a predictable process rather than an anxious one.

Consolidating design expertise, materials science, and large-scale manufacturing capacity into a single partnership compresses timelines in ways that conventional, siloed approaches simply can’t match.

Scaling Without the Disruption

Transitioning from a functional R&D model to full-scale commercial manufacturing doesn’t have to be a high-risk endeavor. With the right partner, it becomes a natural extension of the product development work already underway.

Brevet’s cross-industry expertise and end-to-end capabilities create a predictable, efficient path from early-stage concept to high-yield production. Whether you’re producing low-volume clinical batches or ramping toward automated, high-output lines, Brevet ensures your innovations reach the market quickly, reliably, and without compromise.

You Can Actually See Through It

This sounds simple, but it’s genuinely important. In clinical and laboratory environments, visual confirmation isn’t a nice-to-have; it’s a safety check. Operators need to spot air bubbles, verify flow, and detect particulate contamination before it becomes a problem.

Polycarbonate transmits 85–90% of visible light, giving it near-glass clarity. That means both human eyes and automated optical sensors can monitor what’s happening inside a fluid path without distortion. There’s no guessing, no relying on downstream signals that something went wrong. You can see it.

It Survives Sterilization

Before any medical fluidic assembly enters a sterile environment, it has to prove it can handle the cleaning process without falling apart. Polycarbonate is compatible with the sterilization methods most commonly used in the industry.

Ethylene oxide (EtO) is essentially a non-event for polycarbonate, causing no degradation or change in physical properties. Gamma radiation and e-beam sterilization work well too, though standard grades may develop a slight color shift over time; medical-grade formulations with appropriate stabilizers avoid this. For applications requiring autoclave sterilization, high-heat grades designed to resist hydrolytic degradation under steam are available.

Polycarbonate doesn’t force a compromise between sterility and structural integrity. You get both.

Complex Geometry, One Mold

Here’s where polycarbonate starts to look less like a material choice and more like a design enabler. Because it’s amorphous, it flows predictably through complex mold cavities during injection molding. Shrinkage is minimal and consistent, typically 0.5–0.7%, which means intricate geometries can be held to tight tolerances.

What does this enable in practice? Parts consolidation. Instead of sourcing a connector, a check valve, and an adapter separately and assembling them with threads or solvent bonds, each junction a potential leak point, engineers can design a single molded component that does all three jobs. Multi-port manifolds, integrated stopcocks, multi-tiered routing blocks: things that would be prohibitively expensive to machine from stainless steel or PTFE become straightforward in polycarbonate. Fewer parts means fewer failure modes, a smaller bill of materials, and simpler assembly.

The Barb Connection: Small Detail, Big Impact

A fluidics system is only as reliable as its weakest junction, and the interface between a rigid polycarbonate fitting and flexible elastomer tubing deserves careful attention.

The design principle is straightforward: flexible tubing should slide over the external barbs of the connector rather than insert into a port. When the tubing stretches over the rigid barb, it creates a localized compression seal against the unyielding polycarbonate edge. The near-vertical trailing edge of the barb then resists any pull-back force from fluid pressure. Done correctly, this produces an airtight, blow-off resistant connection that holds at elevated pressures without clamps or zip ties — which can introduce stress concentrations and cleanroom contamination risks.

From Component to Kit

Designing the right polycarbonate component is step one. Getting it into production efficiently is another challenge entirely. Sourcing connectors from one supplier and tubing from another, then cutting, matching, and assembling in-house, introduces tolerance stack-ups, validation complexity, and higher scrap rates.

The Real Problem Isn’t the Pump

Here’s where it gets interesting, and also where Brevet comes in. Most people assume the pump is what brutalizes a formula. And yes, an aggressive pump can do damage. But one of the biggest stress points in a filling line is actually something less obvious: the connectors.

Standard T-junctions, the kind you’d find in a basic industrial setup, force fluid to make a sharp, abrupt turn. Think of it like merging onto a highway by driving straight into a concrete median and hoping for the best. That sudden collision creates friction hotspots where shear damage concentrates. Your vitamin C beads don’t stand a chance.

Brevet’s Parallel Y-Connectors solve this by changing the geometry of the problem. Instead of a sharp right-angle collision, the formula moves through a gradual 45-degree or parallel path. It slides rather than slams. The difference sounds subtle until you see what it preserves:

Thick creams stay thick, because viscosity is maintained rather than disrupted. Encapsulated actives (retinol, vitamin C, those little pearls of whatever expensive thing the brand is marketing) stay intact until they actually reach your skin, which is the whole point. And the formula holds together without separation or that oily “bleeding” you sometimes see in older product sitting in your medicine cabinet.

How the Serious Brands Handle It

The manufacturers who care about what ends up in the jar, not just what’s on the label, are building what you might call a low-stress philosophy into the entire filling process. A few moves that make a real difference:

Replacing harsh pipe angles with Y-geometries keeps the fluid moving in smooth, parallel layers instead of turbulent chaos. It’s the same laminar flow principle that matters in medical-grade fluid systems, applied to your SPF serum.

Switching from high-speed gear pumps to peristaltic pumps changes the feel entirely. Peristaltic pumps move fluid with a gentle, rhythmic squeeze. Less “industrial machine,” more “actually treating the product with some respect.”

And filling containers from the bottom up, rather than pouring from the top, eliminates the air turbulence and bubble formation that can mess with texture and stability before the lid even goes on.

Why this relates to you

A well-formulated luxury skincare product is equal parts chemistry and craft. Someone spent serious time and money getting that texture right in a lab. The whole point of precision manufacturing is making sure that what arrives in your bathroom is actually what was designed in the lab, not a compromised version of it that got knocked around on the way.

When a brand invests in components built for low-shear handling, they’re not just buying better parts. They’re protecting the integrity of the formula all the way to the last pump.

So the next time a cream still feels exactly right on day 60 as it did on day one — that’s not luck. Someone upstream made a deliberate decision to handle it carefully. And honestly, that kind of attention to detail? It shows.

Brevet designs and manufactures precision fluid components for cosmetic, medical, and biopharma filling lines. If you’re building a process that needs to protect what’s inside the formula, talk to the Brevet engineering team today!

Take a Y-connector in a high-pressure fluid system. An FEA simulation will show you precisely where stress concentrates — typically at the junction where the branches meet — and how close those peak stress values are to the material’s limits. It will show you which zones are comfortably within safe thresholds and which ones need attention. You can then adjust the fillet radius at the junction, re-run the simulation in the same afternoon, and confirm the fix before anyone touches a piece of metal.

That same process lets you compare materials side by side in ways that would be prohibitively expensive to test physically. Titanium versus a medical-grade thermoplastic. Standard stainless versus a high-performance alloy. You can model thermal expansion, chemical resistance, fatigue over thousands of operational cycles — all digitally, all before committing to production.

The goal isn’t just to avoid failure. It’s to arrive at the physical prototype with a high degree of certainty that it will perform correctly the first time.

A Better Way to Communicate Complex Parts

3D modeling’s impact doesn’t stop at engineering validation. It changes how products are understood and used once they leave the facility.

Precision components are inherently difficult to communicate. A 2D technical drawing requires training to interpret, and even then, spatial relationships between parts aren’t always obvious. Photographs of small machined components can be worse — flat, ambiguous, and rarely showing the internal geometry that actually matters.

High-resolution 3D renderings solve this in a way that’s hard to overstate. An exploded view showing exactly how a manifold assembly goes together, rendered in full detail, communicates in seconds what a multi-page technical document might struggle to convey. Assembly steps become intuitive. Maintenance procedures become something users can follow without calling support. The engineering integrity of a component is visible, not just described.

For technical product literature, this matters as much as the engineering itself. A customer who understands how a product works is a customer who uses it correctly and trusts it — and that trust is built the moment they open the documentation.

Compressing the Timeline

In competitive markets, development speed is its own form of advantage. A product that reaches the market three months earlier than the alternative doesn’t just capture more revenue — it often captures the customer relationship entirely.

Traditional manufacturing workflows are linear by nature: design, machine, test, identify the problem, redesign, machine again. Each physical iteration eats weeks. A single round of “build and discover” can push a launch date significantly, and by the time you’ve iterated twice, the timeline has slipped in ways that are hard to recover.

Digital-first workflows change the fundamental structure of that process. Iteration in a modeling environment is measured in minutes, not weeks. Adjusting a wall thickness, modifying a thread pitch, or rerouting an internal channel takes an afternoon to design and validate, not a month to prototype and test. Teams can explore multiple design directions in parallel rather than committing to one and hoping it works.

The practical result is a product development cycle that moves roughly 30 percent faster, with fewer surprises at the physical prototype stage. That’s not a marginal improvement — it’s a structural change in how development timelines look.

Certainty as a Product

The shift toward digital-first manufacturing is sometimes framed as a technology story. It’s really a risk story.

Every iteration that happens digitally is an iteration that doesn’t happen in metal, plastic, or time. Every failure mode that’s caught in simulation is a failure mode that doesn’t show up in testing, in the field, or in a customer’s hands. The goal of all this modeling isn’t impressive visuals — it’s engineering certainty. The confidence of knowing that when the physical part is finally made, it will do exactly what it was designed to do.

At Brevet, this is how we approach every component we build. The digital work isn’t preliminary — it’s foundational.

For a closer look at our product configurations and technical capabilities, visit the Kit Hub.

The 90-Degree Problem

Most standard manifolds are built the way they’ve always been: drill straight holes, let them intersect, done. Fast to manufacture, easy to specify, and a true and genuine headache for high-flow applications.

When fluid hits a 90-degree intersection at speed, it slams into a wall. A dead zone of stagnant fluid pools in the corner while the rest of the flow scrambles around it, creating a miniature little storm inside your component. Every junction like this is like a tax on your system’s energy, and those taxes add up fast.

The alternative is swept geometry. Instead of hard angles, the internal channels curve gradually, the way a well-designed highway on-ramp curves to match the speed of traffic. The fluid maintains its momentum, the pressure drop shrinks, and the pump doesn’t have to compensate. In some cases, a system redesigned around swept internal paths can achieve the same output with a smaller, less expensive pump, which changes the cost on the whole device.

Small Devices, Bigger Problem

The industry has been moving toward smaller, point-of-care devices for years, and miniaturization doesn’t just mean less space. It means fluid physics starts behaving differently.

In a micro-scale flow path, wall friction plays a much larger role than it would in a larger system. A slightly rough internal bore that barely registers in a full-size manifold can noticeably choke flow in a miniature one. High-performance small-scale components have to address both geometry and surface finish at the same time. A polished bore reduces the boundary layer, the thin zone where fluid clings to the wall and effectively narrows the usable channel. In a compact device running at high flow rates, that detail can be the difference between a design that works and one that doesn’t.

Thinking Beyond the Single Component

The best valve in the world still has to connect to something. Every threaded fitting, every transition between components, every short run of tubing is another place where flow can stumble.

This is why more engineering teams are moving toward integrated fluidic assemblies: a single manifold block that handles multiple valves, sensors, and connections with optimized internal paths throughout. By eliminating the seams between components, you eliminate the turbulence those seams create. The fluid experiences one continuous, designed flow path instead of a series of individually-specified parts that don’t quite speak the same language.

The System That Doesn’t Call Attention to Itself

A well-designed fluid system is quiet. It doesn’t vibrate, it doesn’t run warm, and the pump doesn’t cycle harder than it should. In a medical or biopharmaceutical context, that quietness isn’t just an engineering nicety, it’s a true performance requirement.

Getting there isn’t always about buying better components off the shelf. Sometimes it requires rethinking the internal geometry entirely and replacing drilled paths with swept ones, determining the right surface finishes, and integrating subsystems to reduce the total number of transitions the fluid has to navigate.

If you’re running into pressure drop issues, heat buildup, or unexplained pump strain, the answer is likely hiding inside the component, not on its spec sheet.

The Brevet Design Team works with engineers on exactly these kinds of challenges. Whether you need a custom swept-channel manifold, a high-flow valve adapted for a specific chemistry, or a fully integrated fluidic subassembly, we build to the requirements of your system, not to a catalog. Reach out to the Brevet engineering team to talk through your application.
