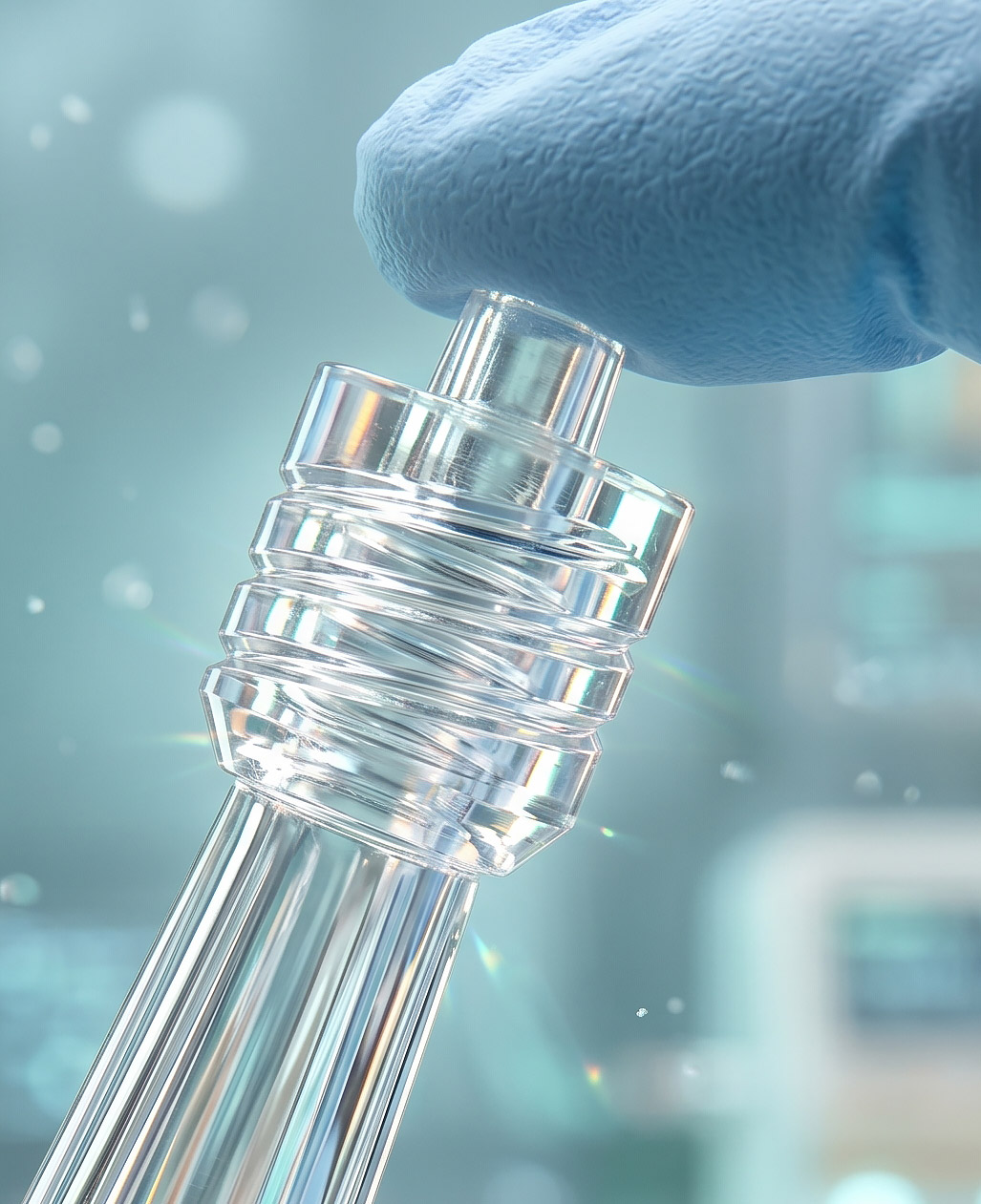

Luer lock connectors have been around for a long time. They’re simple, they’re reliable, and for decades they’ve been the go-to connection standard across clinical settings worldwide. Twist to connect, twist to disconnect. It just works.
But that simplicity carries a hidden downside. When every line in a clinical environment uses the same mating geometry, there’s nothing physically stopping the wrong lines from connecting to each other. And in a hospital room, that kind of mistake doesn’t just cause a workflow problem. It can bring harm to someone.
That’s not an exaggeration. Misconnecting an enteral nutrition line to an IV port, or a respiratory line to a blood circuit, are the kinds of errors that have made medical news for all the wrong reasons. The industry recognized the problem, and that recognition led directly to the ISO 80369 standard.
What ISO 80369-7 Actually Does
The ISO 80369 series was built to solve this specific problem by making misconnection physically impossible. Each part of the standard covers a different clinical application, with distinct connector geometries that simply won’t mate with connectors from a different application. Part 7 specifically covers intravascular and hypodermic connectors, which are the ones used in IV lines, central venous catheters, and related high-stakes applications.
The core mechanism is geometry. ISO 80369-7 mandates a precise 6% taper along the mating cones of both the male and female connectors. That taper creates the sealing force when the connection is made, and it’s calibrated so that a compliant intravascular connector won’t engage properly with a connector designed for a different application, like enteral feeding (Part 3) or neuraxial delivery (Part 6).
The standard also controls inner and outer diameters down to a very tight tolerance range, and it specifies thread pitch and crest geometry on the outer locking collar. These aren’t cosmetic details. If someone tries to force a mismatched connection, the threads won’t catch. The geometry does the work that training and labeling alone can’t always guarantee under the pressure of a fast-moving clinical environment.
For MedTech OEMs, compliance with ISO 80369-7 isn’t optional. It’s the baseline requirement for getting products into global clinical markets, and it carries real consequences in both regulatory approval and liability if something goes wrong in the field.
The Problem That Doesn’t Show Up on the Drawing
Here’s where it gets more interesting from an engineering standpoint. Molding a connector to the correct CAD dimensions is one thing. Keeping it at those dimensions after it’s been installed, pressurized, and cycled through real clinical use is a different challenge entirely.
Medical lines experience pressure spikes. They get repositioned, pulled, and torqued during patient care. In applications like infusion pumps and continuous IV drips, there’s sustained mechanical load on the connector over extended periods. In lower-grade polymers, that load can cause creep, which is the slow, gradual deformation of plastic under stress.
A 6% taper that shifts by even a fraction of a millimeter under creep is no longer sealing the way it was designed to. At best, you get micro-leaks. At worst, you get a disconnection event in a critical care setting.
This is why material selection matters as much as geometric design. Brevet molds its ISO 80369-7 compliant Luer assemblies from high-performance engineering thermoplastics, including premium medical-grade polycarbonates, specifically because of their dimensional stability under load. These materials have the tensile strength and flexural rigidity to hold the connector geometry through high-torque tightening, pressure cycling, and the physical demands of real clinical use.
Putting Compliance to the Test
Getting to ISO 80369-7 certification requires more than building a compliant part and submitting paperwork. The connectors have to pass a structured set of physical validation tests designed to simulate what they’ll actually experience in clinical use.
That includes sustained hydrostatic pressure testing to verify there’s no fluid egress across the mating plane. It includes subatmospheric pressure testing to check for air ingress under negative pressure, which is critical for preventing air embolism in central line applications. Chemical exposure testing evaluates how the material holds up when it contacts the solvents and agents common in clinical environments, things like isopropyl alcohol, lipids, and medical cleaning agents under mechanical stress. And mechanical separation testing verifies that the lugs and threads can withstand the axial and torsional forces applied during connection and disconnection without stripping or pulling apart.
These aren’t edge cases. They’re the conditions these connectors will face, and a compliant part has to perform through all of them.
The Connector Is the Last Line of Defense
In clinical fluid path design, a lot of attention goes into pump selection, tubing routing, and system architecture. The connector at the end of the line can feel like a minor detail by comparison. But that connector is the point where two separate systems meet, and it’s the last physical barrier between the right fluid path and the wrong one.
ISO 80369-7 compliance gives that barrier real structural meaning. Brevet’s precision-molded, fully validated Luer assemblies are built to hold that standard through the demands of real clinical use, not just initial qualification testing.
When you’re designing a fluid path where the stakes are this high, the connector spec deserves the same attention as everything else in the system.
