Why generic tubing doesn’t cut it in medical and biopharma fluid systemsÂ
Anyone who’s tried to force an off-the-shelf tube into a system it wasn’t designed for knows how that story ends. Even small mismatches in inner diameter, wall thickness, shore hardness, or connection tolerance can introduce turbulence, pressure drop, or the kind of micro-leaks that don’t show up until you’re already mid-run. In medical, biopharmaceutical, and technical fluid systems, those small variances aren’t cosmetic, they’re the difference between a fluid path that behaves predictably and one that doesn’t.

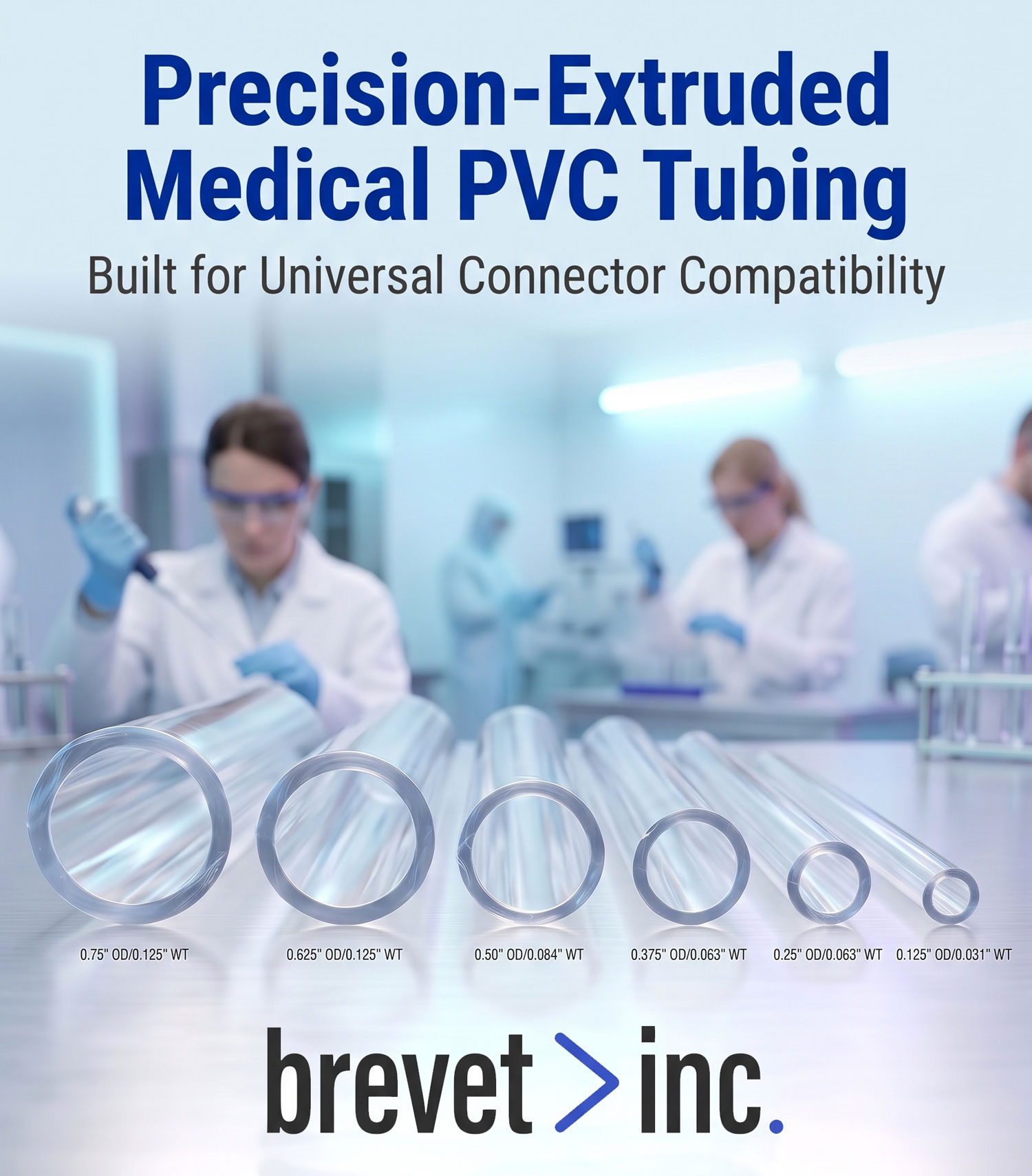

That’s really the case for going custom in the first place. Brevet engineers flexible PVC tubing built to exact application requirements, matching sizing, optical clarity, and connector compatibility instead of asking your system to adapt to whatever’s sitting on a shelf.
Getting the Diameters and Wall Profile Right
Fluid dynamics live and die by geometry, so the extrusion has to be dialed in from the start. Custom-extruded medical-grade PVC tubing gets built to eliminate the friction and inconsistency that generic tubing tends to introduce.
Tight ID and OD tolerances mean lines can be extruded for micro-bore, low-volume dosing applications or scaled up for high-throughput aspiration, all while avoiding kinking, collapse under negative pressure, or blow-off under operating head pressure. Shore hardness and durometer can be calibrated too, from ultra-flexible, drapeable tubing suited for patient interfaces and peristaltic pumps to firmer, semi-rigid profiles meant for structural fluid routing. Wall thickness gets similar attention, balanced to hold up under burst pressure while still seating easily over a connector barb without demanding excessive insertion force. And when visual inspection matters, crystal-clear formulations let you actually see air bubbles, blockages, or particulate flow in real time. All of it starts as biocompatible, DEHP-free, RoHS-compliant medical-grade PVC, compatible with Gamma, EtO, or E-beam sterilization.
Where the Tubing Meets the Connector
A tube is only as good as the junction it plugs into. Pairing custom PVC tubing with Brevet’s connector catalog is what turns individual components into one leak-proof, seamless assembly, following a simple path from fluid source through matched tubing to connector to delivery point or manifold.
Here’s how the connector families break down:
Connector Family | Geometry & Form Factor | Key Fluid Role | Tubing Integration Advantage |
PVC & Polycarbonate Y-Connectors | Symmetric splitting/merging junctions | Line branching, dual-infusion, drainage | Minimizes turbulence at division points, solvent-weld or friction-fit |
Parallel Y-Manifolds | Dual parallel runners from a common intake | Aseptic distribution, multi-channel perfusion, bioprocessing | Streamlines dual-line routing into tidy, non-tangling conduits |
PVC T-Connectors | 90° diversion or injection ports | Sampling ports, pressure monitoring, bypass circuits | Easy push-on integration with standard tubing walls |
Luer Locks & Valves | ISO 80369-7 compliant male/female luers, check valves | Syringe access, stopcocks, rapid disconnects | Overmolded or barbed adapters for leak-free instrument mating |
Stepped Barb Reducers | Concentric multi-tier step transitions | Bridging disparate line gauges (e.g., 1/4″ to 1/8″) | Eliminates sudden shear stress and step-down cavitation |
Why One Vendor Makes the Whole System Better
Sourcing tubing from one supplier and fittings from another sounds harmless until the tolerances don’t quite line up. Keeping both under one roof solves that from the outset. Barbs and tube IDs get dimensioned together, so joints stay tight and tubing walls stay intact instead of splitting under stress. PVC formulations are matched against Brevet’s rigid polycarbonate and flexible PVC fittings for chemical bonding that’s actually been validated, not just assumed. And on the production side, custom-cut lengths, integrated manifolds, valve arrays, and luer terminations can be kitted, bagged, and prepped for sterilization, which takes a real chunk of complexity out of downstream manufacturing.
Ready to Build a Fluid Path Around Your Specs
None of this is about overengineering a simple tube. It’s about making sure the geometry, material, and connector all agree with each other before they ever ship. If your current setup is fighting you on fit, clarity, or seal integrity, Brevet’s engineering team can build tubing and connectors around your actual application instead of the nearest standard part. Reach out and let’s map out your fluid path together.
