Why Your Fluid System Is Working Too Hard

The 90-Degree Problem

Most standard manifolds are built the way they’ve always been: drill straight holes, let them intersect, done. Fast to manufacture, easy to specify, and a true and genuine headache for high-flow applications.

When fluid hits a 90-degree intersection at speed, it slams into a wall. A dead zone of stagnant fluid pools in the corner while the rest of the flow scrambles around it, creating a miniature little storm inside your component. Every junction like this is like a tax on your system’s energy, and those taxes add up fast.

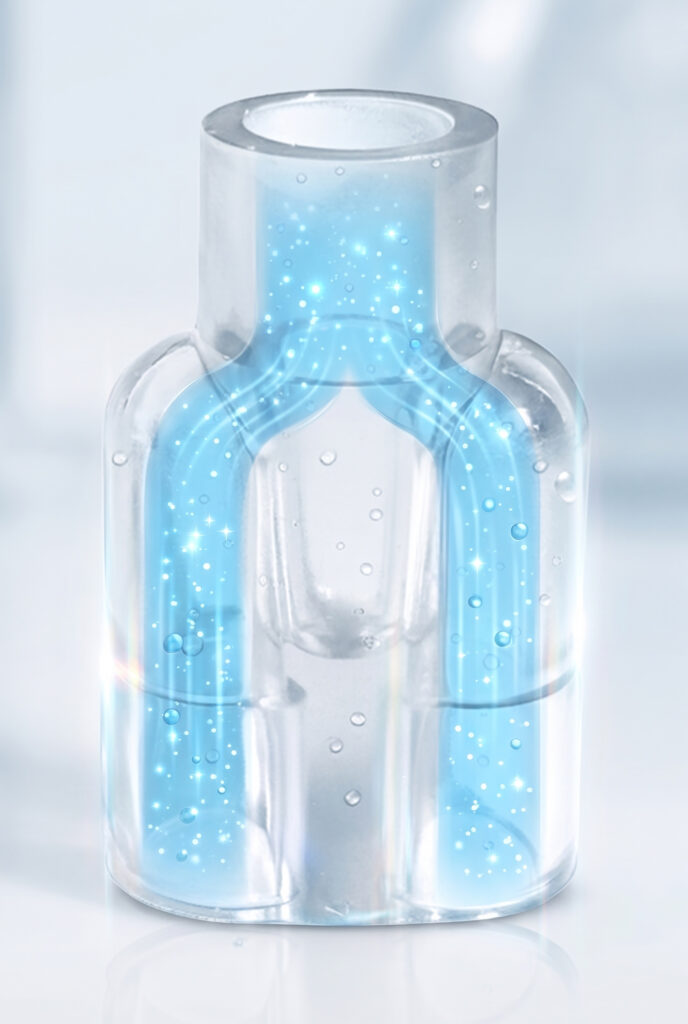

The alternative is swept geometry. Instead of hard angles, the internal channels curve gradually, the way a well-designed highway on-ramp curves to match the speed of traffic. The fluid maintains its momentum, the pressure drop shrinks, and the pump doesn’t have to compensate. In some cases, a system redesigned around swept internal paths can achieve the same output with a smaller, less expensive pump, which changes the cost on the whole device.

Small Devices, Bigger Problem

The industry has been moving toward smaller, point-of-care devices for years, and miniaturization doesn’t just mean less space. It means fluid physics starts behaving differently.

In a micro-scale flow path, wall friction plays a much larger role than it would in a larger system. A slightly rough internal bore that barely registers in a full-size manifold can noticeably choke flow in a miniature one. High-performance small-scale components have to address both geometry and surface finish at the same time. A polished bore reduces the boundary layer, the thin zone where fluid clings to the wall and effectively narrows the usable channel. In a compact device running at high flow rates, that detail can be the difference between a design that works and one that doesn’t.

Thinking Beyond the Single Component

The best valve in the world still has to connect to something. Every threaded fitting, every transition between components, every short run of tubing is another place where flow can stumble.

This is why more engineering teams are moving toward integrated fluidic assemblies: a single manifold block that handles multiple valves, sensors, and connections with optimized internal paths throughout. By eliminating the seams between components, you eliminate the turbulence those seams create. The fluid experiences one continuous, designed flow path instead of a series of individually-specified parts that don’t quite speak the same language.

The System That Doesn’t Call Attention to Itself

A well-designed fluid system is quiet. It doesn’t vibrate, it doesn’t run warm, and the pump doesn’t cycle harder than it should. In a medical or biopharmaceutical context, that quietness isn’t just an engineering nicety, it’s a true performance requirement.

Getting there isn’t always about buying better components off the shelf. Sometimes it requires rethinking the internal geometry entirely and replacing drilled paths with swept ones, determining the right surface finishes, and integrating subsystems to reduce the total number of transitions the fluid has to navigate.

If you’re running into pressure drop issues, heat buildup, or unexplained pump strain, the answer is likely hiding inside the component, not on its spec sheet.

The Brevet Design Team works with engineers on exactly these kinds of challenges. Whether you need a custom swept-channel manifold, a high-flow valve adapted for a specific chemistry, or a fully integrated fluidic subassembly, we build to the requirements of your system, not to a catalog. Reach out to the Brevet engineering team to talk through your application.
